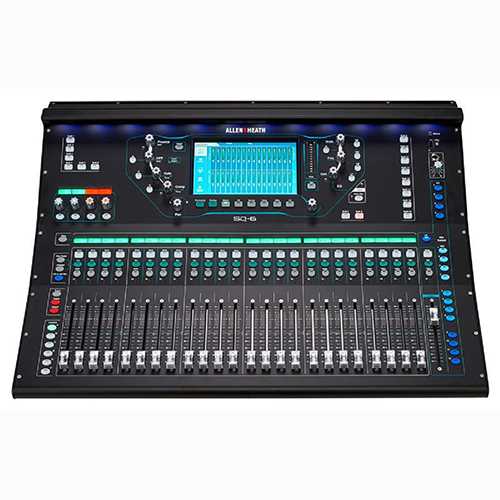

Mixer
Number of Analog Input Channels 48
Faders x 3.9″ / 100 mm
Mix Routing 8 x Stereo FX Return
Groups 8 x Mute Group
8 x DCA Group
Display 7″ / 177.8 mm Touchscreen
Display Resolution/Color Main Display:
800 x 480 8-Bit RGB
Meters Main Meter:
2 x 12-Segment LED
Channel Meter:
Single LED
Meter Range -3 dBFS Peak/Clip (+19 dBu at XLR Output)
Meter Calibration 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output)
Signal Processing
Gain/Trim Range Line:
±24 dB (Stereo Channels)
Mic/Line:
0 dB to +60 dB (in 1 dB Steps)
Input Pad -20 dB
Input Polarity Normal/Reverse
Gate Parameters Threshold: -72 to +18 dBu
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 sec
Release: 10 ms to 1 sec
Compressor Parameters Threshold: -46 to +18 dBu
Ratio: 1:1 to ∞:1
Attack: 30 μs to 300 ms
Release: 50 ms to 2 sec
Knee: Soft, Hard
Blend: Yes
Sidechain Filters Compressor:
High-Pass: 20 to 5 kHz
Band-Pass: 120 Hz to 10 kHz
Low-Pass: 120 Hz to 20 kHz
Gate:
High-Pass: 20 Hz to 5 kHz
Band-Pass: 120 Hz to 10 kHz
Low-Pass: 120 Hz to 20 kHz
EQ FX Returns:
4-Band Parametric
EQ Parameters 1 x HF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2 x MF Notch/Peak:
±15 dB at 20 Hz to 20 kHz
1 x LF Shelf:
±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return
Internal Effects Reverb
Stereo Delay (Tap)
Reverb (Gated)
ADT
2 x Chorus
Flanger
Phaser
Real Time Analyzer 31-Band 1/3 Octave, 20 Hz to 20 kHz
Audio Delay Adjustable Up to 682 ms
Digital Audio
Sample Rates 96 kHz
AES3 Output:
44.1 / 48 / 88.2 / 96 kHz
Stereo Record:
96 kHz
Stereo Playback:
44.1 / 48 / 96 kHz
Multitrack Playback/Multitrack Record:
96 kHz
Bit Depth Up to 96-Bit
Stereo Record:
24-Bit
Stereo Playback:
16 / 24-Bit
Multitrack Playback, Multitrack Record:
24-Bit
Latency <0.7 ms (Mic Input to Main Output)
Performance
dBFS Reference Level +18 dBu = 0 dBFS
Headroom +18 dB
Frequency Response 20 Hz to 20 kHz +0/-0.5 dB
Max Input Level Mic/Line Input:
+30 dBu
Aux Input:
+22 dBu (+4 dBu)
+18 dBu (0 dBu)
Output Level Analog Output:
+4 dBu (Nominal)
+22 dBu (Max)
Analog Dynamic Range 112 dB
I/O Impedance 1/4″, XLR Output:
<75 ohms
AES3 Output:
110 ohms
Aux Input:
>7 kilohms
Mic/Line Input:
>5 kilohms
Noise Floor -90 dBu with Inputs Muted
THD+N 0.006% at Unity Gain
Mic/Line Input to AES3 Output:
0.002% at Unity Gain
0.003% at +30 dB Gain
Signal Generator Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)
Connectivity
Analog Inputs 1 x XLR Talkback Input
24 x XLR Balanced Mic/Line Input
4 x 1/4″ TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled)
1 x 1/8″ / 3.5 mm Unbalanced Aux Input
Analog Outputs 14 x XLR Balanced Output
2 x 1/4″ TRS Balanced Output
Phantom Power +48 V
Digital I/O 1 x RJ45 (Network)
1 x XLR AES3 Output
1 x etherCON (I/O)
USB 1 x USB Type-A (External Memory)
1 x USB Type-B (USB 2.0, Audio Streaming)
Expansion Ports 1 x I/O Card
Recording
Max Multitrack Recording 16 Tracks
File Format Support WAV
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 25.1 x 20.3 x 7.8″ / 638 x 514.9 x 198 mm
Weight 29.3 lb / 13.3 kg
Packaging Info
Package Weight 40.3 lb
Box Dimensions (LxWxH) 32.5 x 27 x 14.5″
